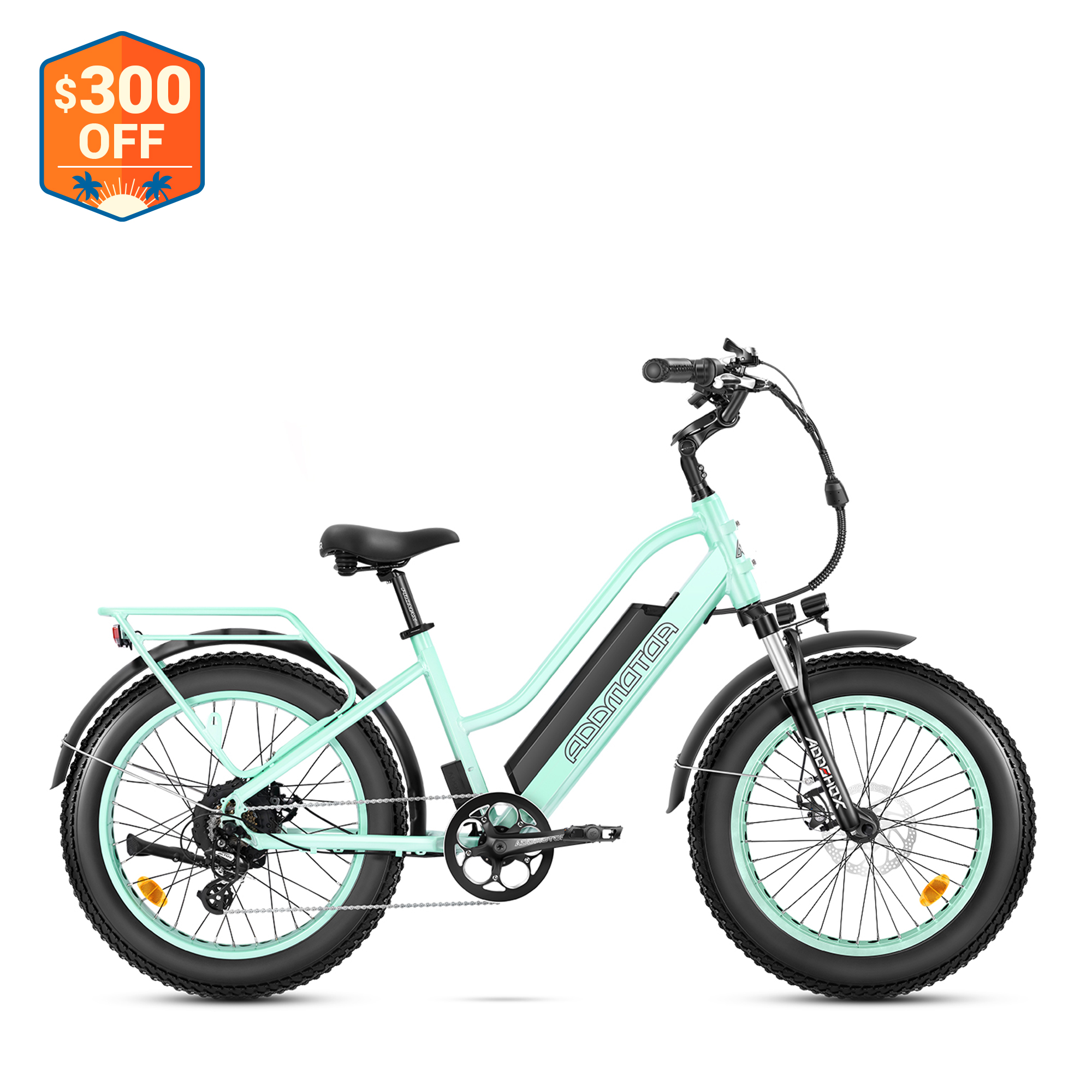

MOTAN M-430
rear-drive-motor-icon

Rear-Mounted Motor

48V*750W
rear-drive-motor-icon

Miles per Charge(Estimate)

Up to 85+ Miles
rear-drive-motor-icon

Swordfish Battery

48V*20Ah
rear-drive-motor-icon

Payload Capacity

300LBS

MOTAN M-430

EXTRA $300 OFF

Fat Tire Electric Beach Cruiser
Ships in July
Price:
$1,499.00
$1,799.00

0% APR or as low as $136/mo with . See if you qualify

    Please select the information you wantX
  • Color:
    Cyan
    Estate blue
    Cyprus green
    Pearl white
    Rose gold
    Black
Quantity:
-
+
AmericanExpress
Maestro
Mastercard
Visa
Jcb
Discover
AmazonPay

You May Also Like

Fun Features Fun Features
Fun Features

Specifications Specifications
Specifications

Measurements Measurements
Measurements

Video Review Video Review
Video Review

Fat Tire Cruiser Electric Bike 2023

Upgraded M-430 electric bike model is best for leisurely cruising, which comes with 6 remarkable colors, removable battery pack, and 24" spoked wheels.

430-motan-e-bike-pc-showing-estate
430-motan-e-bike-pc-showing-blue
430-motan-e-bike-pc-showing-black
Features of Motan M430-motan-e-bike-pc-showing-white
430-motan-e-bike-pc-showing-rose-gold
430-motan-e-bike-pc-showing-cyan
430-motan-e-bike-pc-showing-estate
430-motan-e-bike-pc-showing-blue
430-motan-e-bike-pc-showing-black
Features of Motan M430-motan-e-bike-pc-showing-white
430-motan-e-bike-pc-showing-rose-gold
430-motan-e-bike-pc-showing-cyan
430-motan-e-bike-mobile-showing
Motan M430 Battery Logo
48V*20AH
Lithium Battery Samsung Cells
Motan M430 Estimated Miles Logo
85+ MILES (PAS 1)
Miles Per Charge (Estimate)
Motan M430 Motor Logo
750W POWERFUL MOTOR
Brushless Rear-Mounted Hub Motor
Motan M430 Front and Rear lights Logo
FRONT & REAR LIGHTS
Powered by Main Battery and Controlled by Display
Motan M430 Strong and Durable Frame Logo
STRONG & DURABLE FRAME
6061 Aluminum Alloy Frame
Motan M430 Fat Tires Logo
24" X 4" TIRES
Kenda Puncture-Resistant Fat Tires
Motan M-430 Real Product Pic Outdoor
Motan M-430 Pearl White and Blue Outdoor Pics
Innumerable Riding Possibilities

The M-430 cruiser model is a perfect comfy e-bike for quick trips and city cycling.

Details of Motan M430 ebike Kenda 24 fat tires
Kenda 24" X 4" Tires

Thanks to the step-thru design and 24''
wheels, this M-430 cruiser is one of most
approachable e-bike that you can get on
and off it quick and easy. Plus the Kenda
4'' fat tires, this bike contributes to a
thrilling and yet still comfortable ride.

Motan M430 48V*750W Rear-Mounted Motor
48V * 750W
Rear-Mounted Motor

Using a 750W rear hub motor, the rider can
shift gears more easily without putting
too much strain on the drive train,
extending the life of the components.

Motan M430 48V*20Ah Samsung Battery
48V*20Ah Samsung
Lithium-Ion Battery

Offer 960Wh of capacity, making this
cruiser e-bike best for a green ride, like
long-distance daily commuting
and leisurely cruising.

Motan M430 Up to 85 miles Riding Range
Up To 85 Miles Riding
Range Go for a Fun
And Comfy Cruising

With the 80mm front fork, this M-430 fat
tire e-bike is basically designed to ensure
a fairly cushy ride. Just go out
and play fun.

Motan M430 ebike LCD Display
Latest EB 2.0
Multi-Functional
LCD Display

Multiple riding info, like battery usage,
mileage, speed, lighting usage, PAS level
(7 level options), current motor wattage,
are presented on the 5-inch screen.
This makes your ride safer
and easier to control.

Motan M-430 ebike Lighting System
EB 2.0 Electric
Lighting System

To ensure great safety for night riding,
upgraded M-430 e-bike, equipped with
a 40-lumen headlight and multi-functional
taillight, has 200 meter visual range and a
360° side view. The taillight can also deliver
the driving, danger, flashing, braking,
and left & right turning signals.

Motan M-430 ebike Disc Brakes
Tektro 180mm Disc Brakes

It provides great force for stopping, but
they are also very easy to maintain.

young man with his Motan M-430 young lady with her Motan M-430 bicycle
Details of Motan M430 750W Brushless Rear-Mounted Motor
750W Brushless Rear-Mounted Motor

With 750w at your disposal,the high-speed brushless rear-mounted hub motor can help you conquer the most rugged terrains easily.

Details of Motan M430 80MM Travel Addshox Front Fork
80MM Travel Addshox Front Fork

With preload-adjustable, the front fork gives you a more smoother and comfortable riding experience.

Details of Motan M430 7-Speed, Cassette 14-28 Tooth
7-Speed, Cassette 14-28 Tooth

7-Speed Derailleur, A wider range of gearing at your disposal means more torque for treacherous uphill climbs.

Details of Motan M430 20Ah Samsung Battery Pack
20Ah Samsung Battery Pack

Rechargeable and removable 20Ah long-lasting Samsung lithium battery will give you enough juice to go long distances.

Details of Motan M430 Twist Grip Throttle with Power-Cut Switch
Twist Grip Throttle with Power-Cut Switch

750W of power-on-demand

Details of Motan M430 Detachable Rear Rack, Full-Cover Fenders
Detachable Rear Rack, Full-Cover Fenders

Let's you carry cargo, or cruising with your puppy. Full-cover fenders keep your pants dry and clean.

Details of Motan M430 24'' x 4.0'' Fat Tires
24'' x 4.0'' Fat Tires

Kenda 24'' x 4.0'' Fat Tires for all terrain riding

Details of Motan M430 Integrated Headlight
Integrated Headlight

Powered by the main battery pack and controlled by the display.

Details of Motan M430 Integrated Brake Taillight
Integrated Brake Taillight

Powered by the main battery pack and features brake light functionality that is activated any time the brakes are applied.

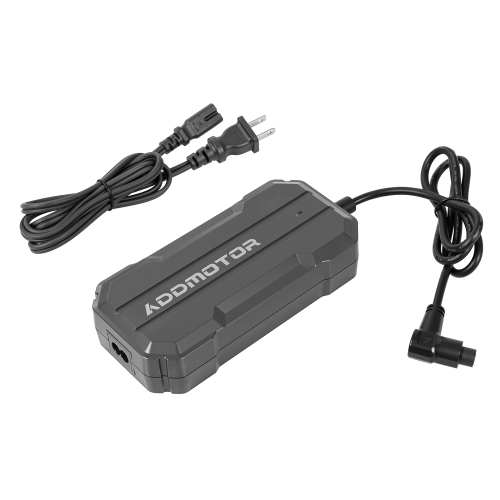

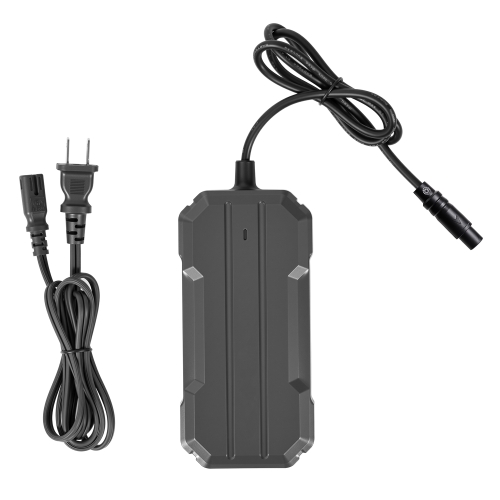

2.5A US Standard DC Smart Charger

Charging Time 8-10 Hours Rated For 1,000-1,500 Charge Cycles

Technical specs
+Electronics
Battery
48V*20Ah Sumsung Lithium-Ion Cell Battery Removable Pack Charging time 8-10 hours Rated for 1,000-1,500 Charge Cycles
Motor
Addmotor 48V*750W Rear-Mounted Hub Brushless Motor
Display
Addmotor 5 Inch LCD Display with USB Port
Throttle
Variable Speed Control -- 1/2 Twist Throttle
Charger
2.5A US Standard DC Smart Charger
Controller
Addmotor 25A Controller
Integrated Light
Integrated Headlight and Taillight Powered by The Main Battery and Controlled by Display
Integrated Wiring
Water-Resistant Connectors And Wiring Harness
+Components
Frame
6061 Aluminum Alloy Frame
Front Fork
Spring Suspension Fork with 80mm Travel, Preload Adjustable, and Lockout
Brake Lever
Mechanical Disc Brake, Aluminum Alloy Grip Lever with Motor Cutoff Switch  Integrated Bell
Brake Calipers
Tektro Aries
Brake Rotors
Tektro 180mm F/R
Shifter
Shimano Right Thrum Shifter
Derailleur
Shimano Altus 7-Speed
Handlebar
Aluminum Alloy, Adjustable Angle, 26''
Grip
Durable Leather Ergonomic Grips
Stem
Promax, Adjustable
Fenders
Front and Rear Fenders Included, Full Coverage
Wheel
24 x 4.0'' Fat Tire
Saddle
Addmotor Comfortable Saddle
Seat Post
Promax Quick Release 32cm
Front Basket
Optional
Measurement

Suits riders in the height range of 5'2"-6"

Max load capacity is 300 lbs

motan m430 ebike measurement

1Total Length 76"

2Wheelbase 48"

3Seat Tube 17.5"

4Standover Height 23.5"

5Maximum Seat Height 39.5"

6Minimum Seat Height 32"

7Minimum Handlebar Height 45"

8Maximum Handlebar Height 48"

9Reach 14"

10Bike weight (Include Battery) 73lbs

Video Review
0
votes
Answer:
It's coming back in stock by early July.
By Manage on June 25, 2024
0
votes
Answer:
Hi, M-430 e-bike model is in stock.
By Manage on May 06, 2023
0
votes
Answer:
Hi! To turn on the taillight, please Press UP (+) or DOWN (-) to modify the brightness of the taillight and confirm by pressing MODE.
By Manage on September 14, 2021
0
votes
Answer:
When I come to an intersection where I must stop I put the pedal assist to zero and turn on the throttle on the right side of the handlebar. &nbs... see more
When I come to an intersection where I must stop I put the pedal assist to zero and turn on the throttle on the right side of the handlebar.  When I enter the intersection I use the throttle for only about 3-5 seconds and the bike responds well.  Then I r see less
By Addmotor Customer on June 29, 2021
1
votes
Answer:
Hi! Sorry for the delay. To turn on the headlight and taillight of M-430, please check the following steps:
1. Hold both “UP” & “Mode... see more
Hi! Sorry for the delay. To turn on the headlight and taillight of M-430, please check the following steps:
1. Hold both “UP” & “Mode” for 3 seconds to turn the headlight on and off.
2. Back Light Brightness: The third setting parameter regulates the b see less
By Manage on August 05, 2021
0
votes
Answer:
M-430 bike comes in one frame size only. There are two similar bikes you may also interested in. M-450 P7 bike with 26" wheels: https://www.addmo... see more
M-430 bike comes in one frame size only. There are two similar bikes you may also interested in. M-450 P7 bike with 26" wheels: https://www.addmotor.com/products/m-450-p7 M-50 bike with 20" wheels: https://www.addmotor.com/products/m-50 see less
By Manage on February 18, 2021
1
votes
Answer:
M-430 net weight is 73 lbs.
By Manage on February 18, 2021

Post your question

Your question might be answered by sellers,manufacturers,or customers who bought this product.

Customer Reviews
Average rating: 5.0 based on 16 reviews
Share your thoughts with other customers
Write a review

Reviews with images

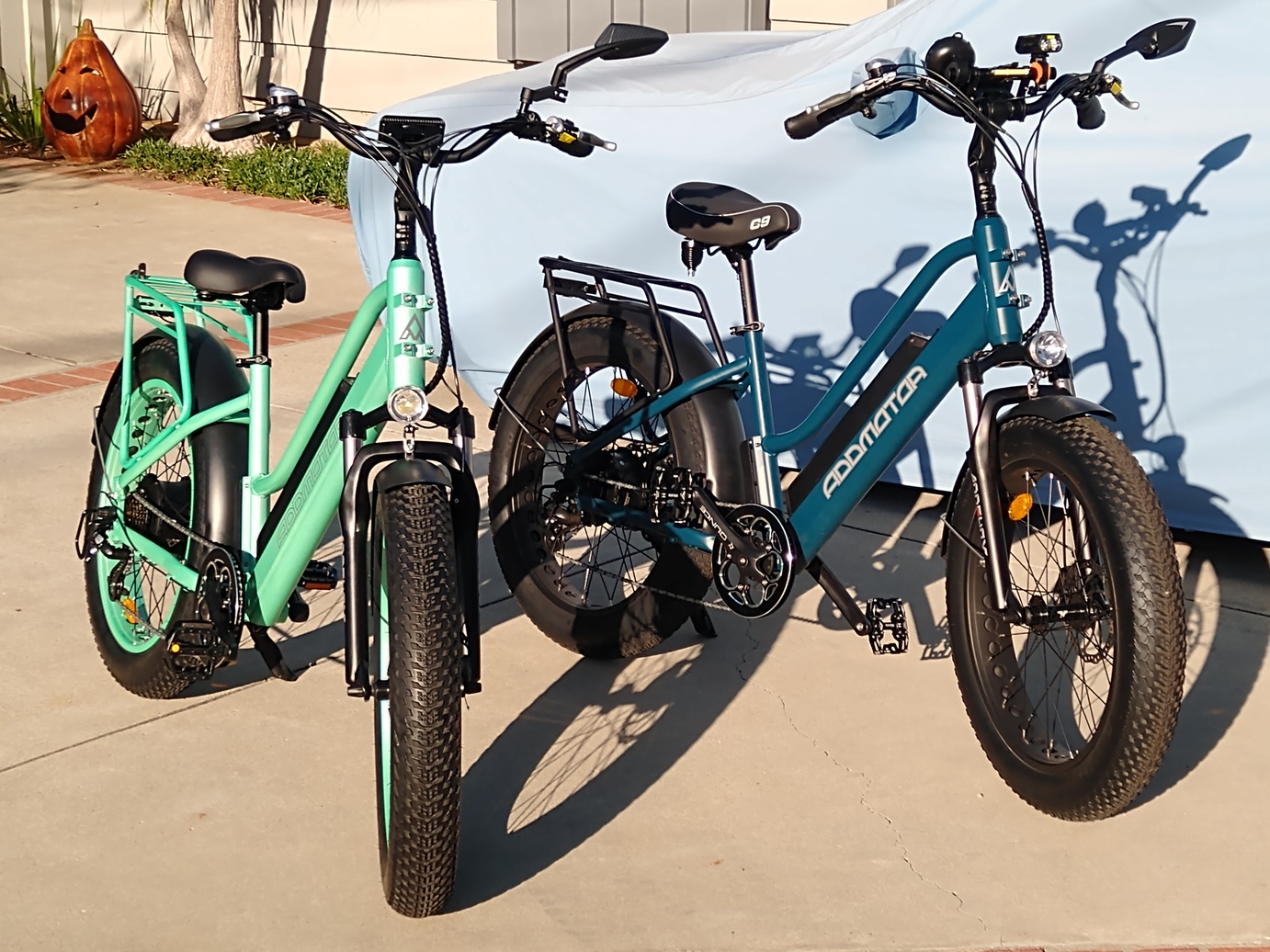

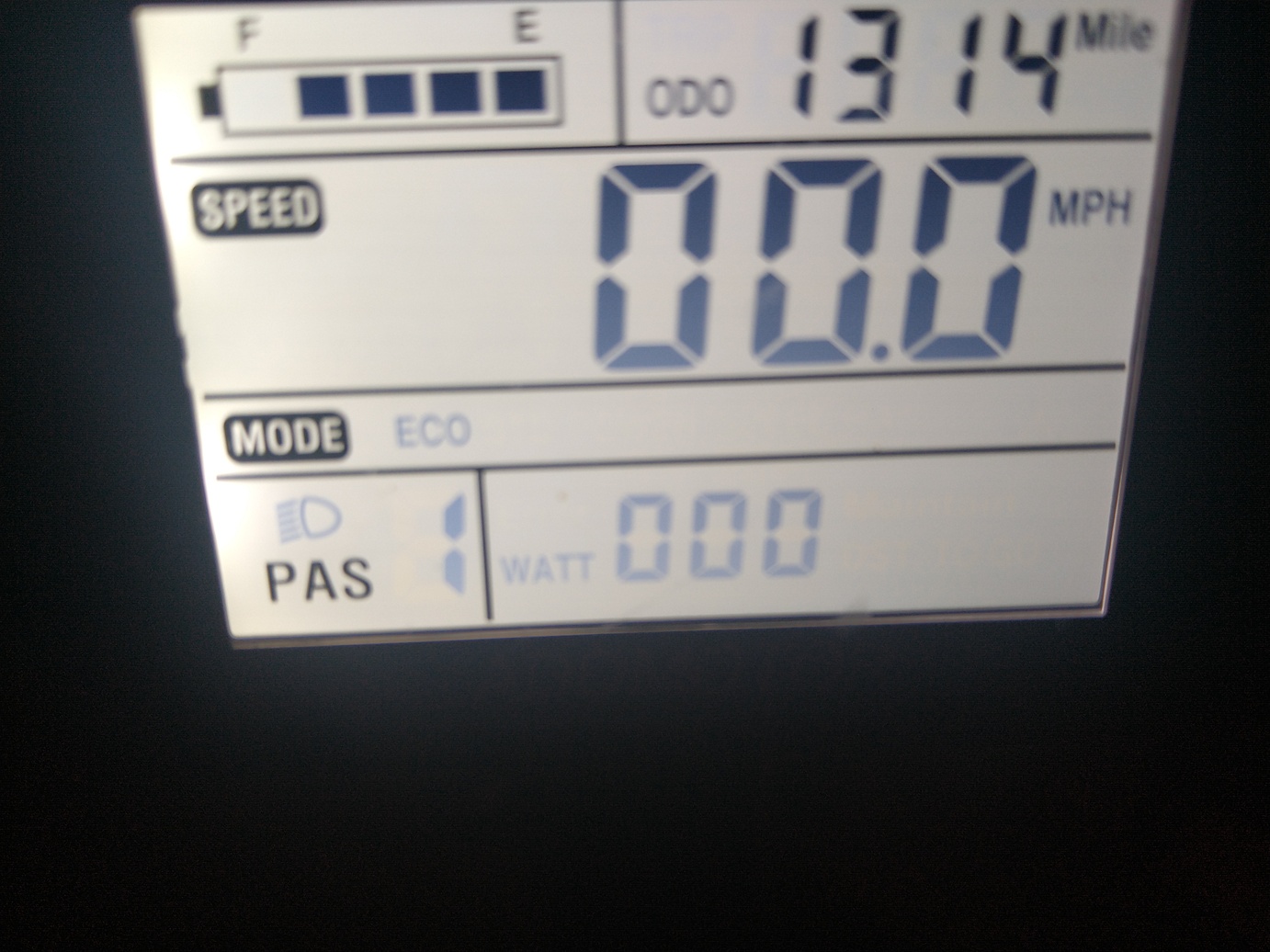

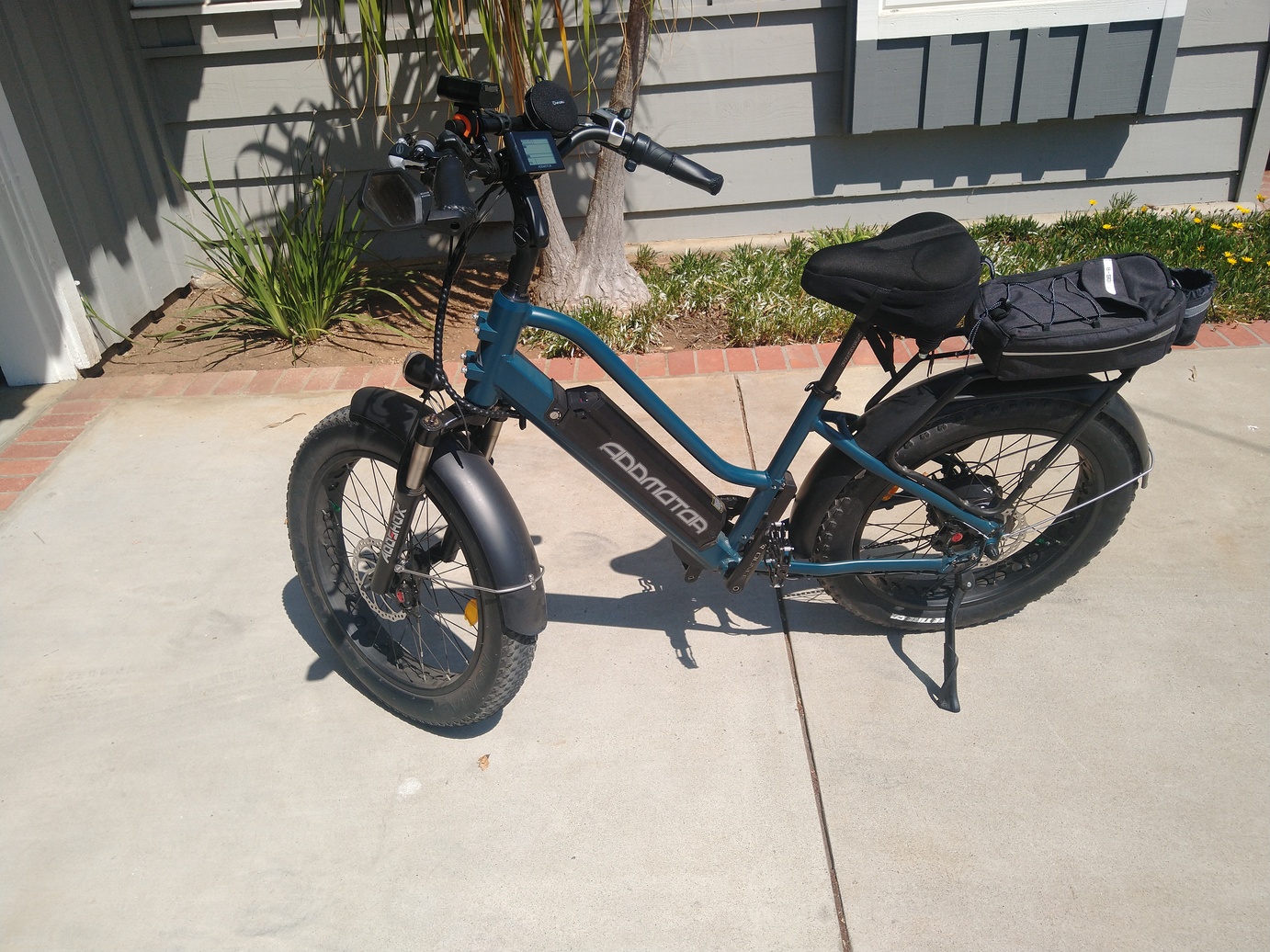

Real photos from customer reviews
Real photos from customer reviews
Real photos from customer reviews
Real photos from customer reviews
Real photos from customer reviews
Real photos from customer reviews
Real photos from customer reviews
See more
  • Head Portrait
  • Ter***
  • Nov 03, 2023
I have provided previous reviews on the product I received from Addmotor.  Absolute 5 stars for the equipment and the joy it brings me.  This review is focused on the customer service.  I don’t think any word exists to express how much the Addmotor Customer Service has exceeded my expectations.  My husband and I both purchased e-bikes from them and we are both delighted with every aspect of this company. BUY.FROM.ADDMOTOR.  You won’t be sorry.
  • By Man***
    Thank you so much for sharing your experience with Addmotor, and happy 1-year birthday to your fantastic e-bikes! We're thrilled to hear that you've had a positive experience with both the product and the customer service.  It warms our hearts to know that you and your husband are enjoying your e-bikes and that Addmotor has exceeded your expectations in every aspect. Delivering excellent customer service is a top priority for us, and it's incredibly rewarding to see that reflected in your review.  We appreciate your trust and your recommendation to others. If you ever have any questions or need assistance in the future, please don't hesitate to reach out. Here's to many more joyful rides with your Addmotor e-bikes!  Sincerely, Addmotor Tech
    Dec 01,2023 15:47:38

  • Head Portrait
  • Kim***
  • Sep 20, 2023
This bike is the most well made bike I have ever owned! They did not cut corners anywhere. I fell in love with the color (rose gold) and  it is beautiful. I am 5’3” and it is a little tall for me. I cannot flat foot it , but wouldn’t trade it for any other bike! Also I agree with others , excellent response time and help from customer service.
  • By Man***
    Dear Kim,  We're thrilled to hear that you're absolutely loving your new bike, especially in the stunning rose gold color. We take pride in our commitment to quality and craftsmanship, and it's great to know that our efforts have not gone unnoticed. Your kind words about our customer service team are also greatly appreciated; we're always here to assist and ensure your satisfaction.  If you ever have any more feedback or questions in the future, please don't hesitate to reach out. Happy riding!  Best regards, Addmotor
    Sep 21,2023 17:09:42

  • Head Portrait
  • Ste***
  • Aug 25, 2023
My husband and I both purchased Addmotor bikes. I love the Motan M-430. It is perfect for me! The size and weight of this bike are no problem. We have enjoyed hours of riding while camping and exploring trails. The customer service is great, and they go above and beyond to help you. I highly recommend this bike and company!
  • By Man***
    Dear Stephanie Jensen,  Fantastic to know that both you and your husband are embracing the world of Addmotor bikes! The Motan M-430's tailored fit and versatile performance are truly appealing. We're thrilled to hear about your enjoyable camping adventures and trail exploration. Your kind words about our customer service make us proud. Wishing you many more amazing rides ahead!  Sincerely, Addmotor Tech
    Aug 28,2023 17:36:32

  • Head Portrait
  • Dal***
  • Jun 05, 2023
This is the 3rd M-430 I have bought in the last 3 years, bought 2, 2 years ago for me and my wife,  bought
this one for my granddaughter, These are heavy duty bikes. Not lightweight, but have taken this bike off track
many times and off trails, goes thru sand, mud, water (slowly) gravel, rocks, slowly but pulls thru easily. I've
gone up hills at a 30* . The one I just bought is a newer model and the improvements are great. About 800
miles on 1st two and not one problem, 5 stars on these bikes
  • By Man***
    Hi Dale, We're ecstatic to have you as a three-time customer, embracing the thrilling adventures with the Addmotor M-430!   These heavy-duty bikes fearlessly conquer off-track escapades through sand, mud, gravel, and even water.   You've conquered steep hills with ease, showcasing the bike's incredible power. We truly appreciate your 5-star rating!  Sincerely, Addmotor Tech
    Jun 05,2023 17:13:27
